How To - Make a Quick and Dirty E-11 Holster


Recommended Posts

Team this is great How to created by our very own ELP. Here is his original Post.

ELP Original Post



All of this write up is his, I just added the "Things you will need" section as well as the Blue Prints as the old links were broken.



VERY PIC HEAVY - Sorry.

Also I'm going to edit / add to the initial post so troopers don't need to scroll through posts to find my next step.

_____________________________________________________________________



Hi All,



I've never done this before but I thought I'd share either my sewing triumph or proof that I need to be a bit more patient. Cause frankly I've gotta do something while the E6000 on my TX fully cures.

For this attempt I'm going to follow the pattern without changing or adding anything. I'll probably make a few suggestions at the end as I'm thinking the addition of sewn in ABS straps would add some extra rigidity ... but we'll see.

All alterations from the plan will be listed here, and in the corresponding step.



Things you will need:

Vinyl

Hole Punch

Snaps amd snap kit

Rivets and washers

Sewing Machine and or Sew by hand

Black Sharpie

Razor/exacto or Scissors

Hole Punch

Ruler





Fixes / Adjustments:

Step 5.3: Shows the back of the blaster holster for a Hasbro Mod should be about an inch longer.

Step 6.1: Extended the belt attachemnt straps from 4 to 10.5 inches.

_____________________________________________________________________



1st Step:

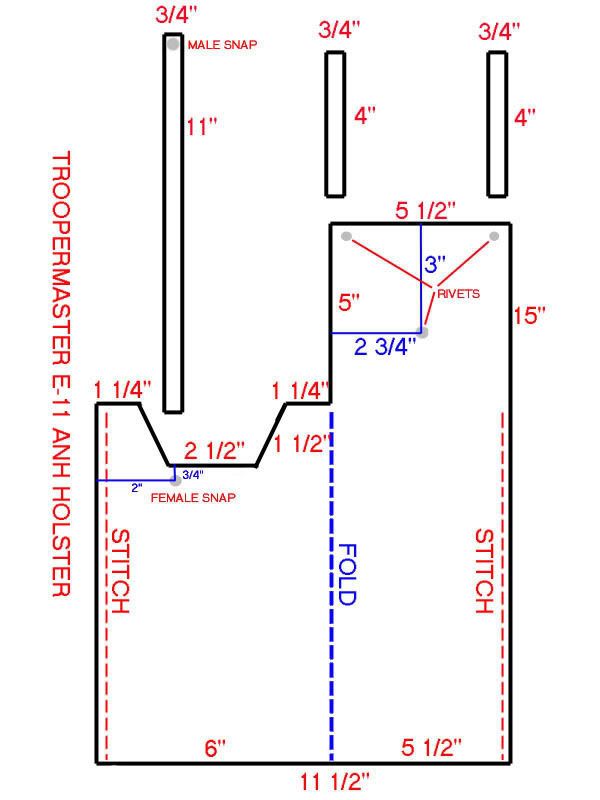

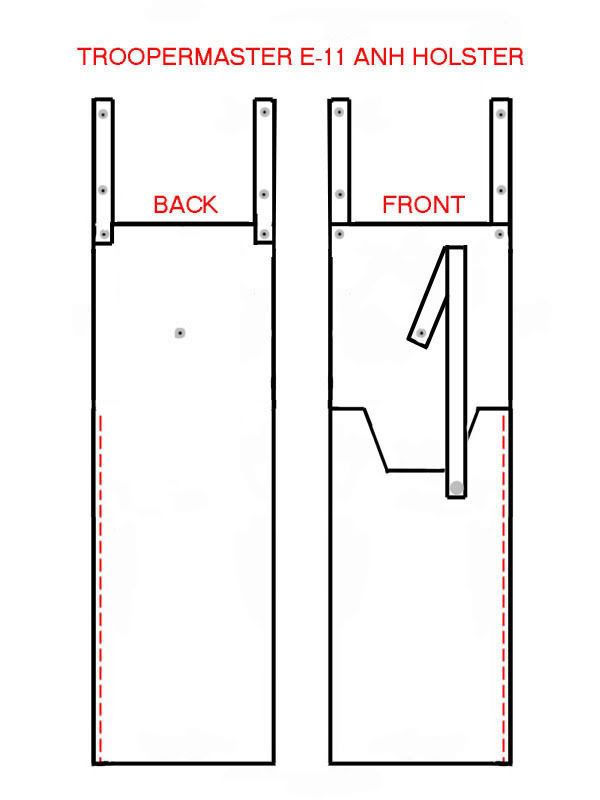

Download Troopermaster's (thanks for this where-ever you are) holster Blue Prints :









2nd Step:

Read control info regarding Holster " HOLSTER: made of black leather or leather like material, worn on the left ".

Note: Worn on left is very important as it will determine how the Vinyl is put together. See later on (Step 4.4: Test Fit).

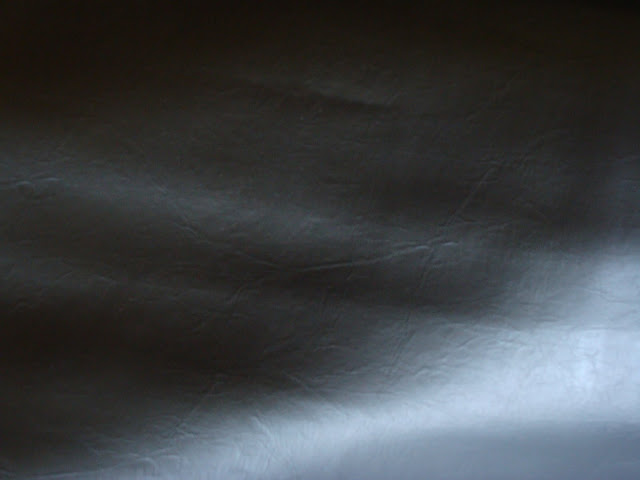

I bought material ($14 / yard - enough for ~4 - 5 holsters or 4 - 5 big mistakes). There was about 7 types of black vinyl to choose from but I settled on one with a medium shiny appearance, and a simulated leather finish:




3rd Step:

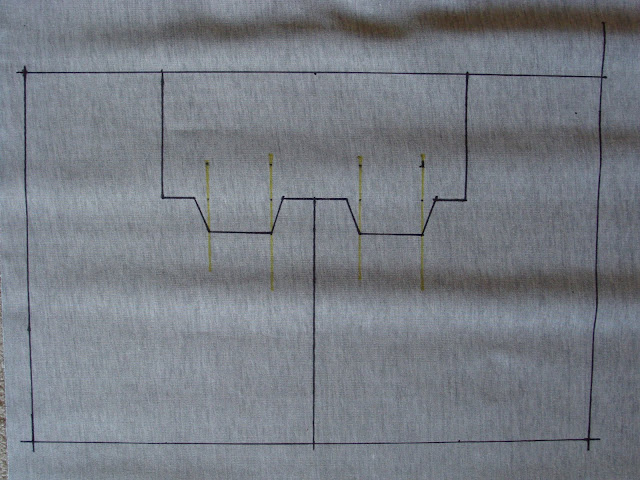

Transfer the Blue Prints. My wife said "it's called a pattern", I said "it's Star Wars ... It's a Blue Print". The key here is to make sure your "blue print" starts with a 90 degree corner. This will ensure your drawing will be squaire.


Now you'll notice these lines don't exactly match the 'blue print'. That's because I want all black vinyl on every outer surface - even if people won't see it. So the two bits get sandwiched together and then the holster will get built. Look at the lower pictures ... It'll make sense I promise.

Total Time: 40 Minutes.



Next Step: Cutting, Sewing and Swearing.



4th Step:

Cutting.

This was as easy as it sounds. Just cut out the "Blue Print".

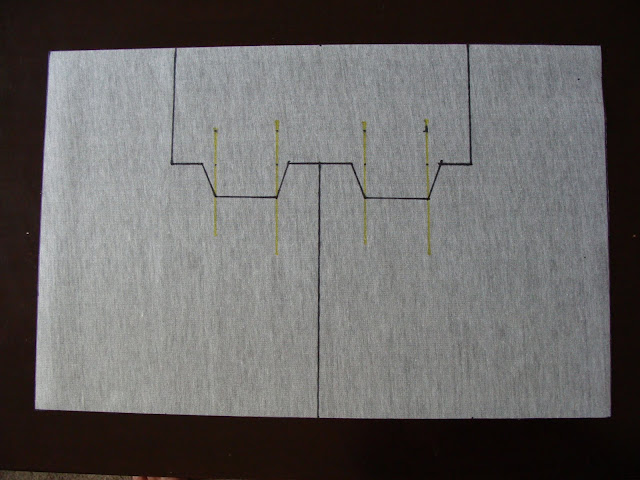

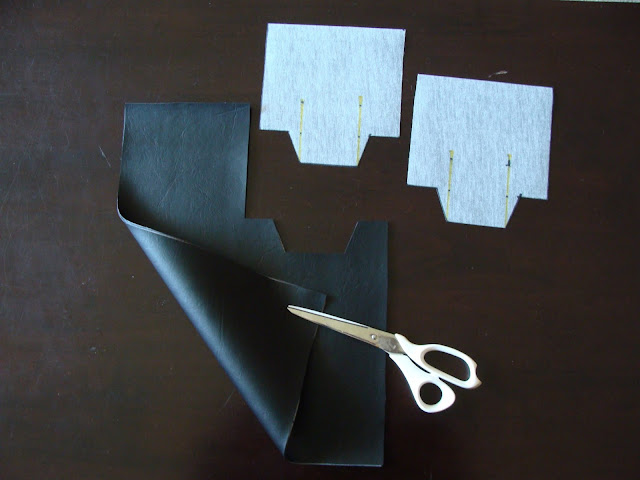

4.1: Trimmed

I trimmed off the outside area leaving only the rectangle of fabris I will use.

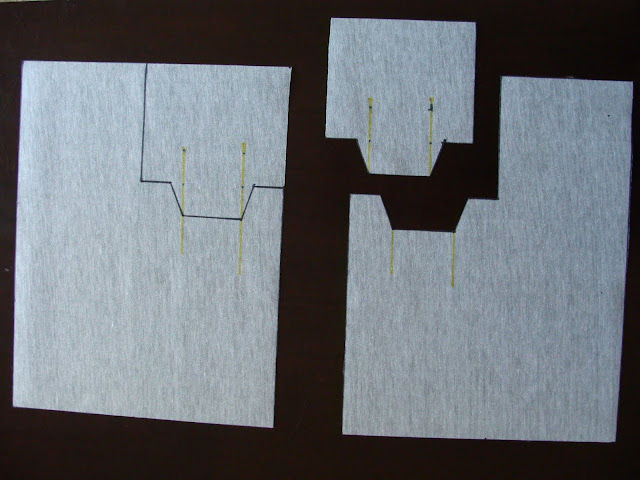

4.2: Split and more trimming

I cut the piece in half and then trimmed out the inner cut.




4.3: Sandwich Test


I've put the Vinyl 'sandwich' together to show how the two parts will go together. Also here I'm going to trace one half of my Vinyl Sandwich to use as a template should I make more of these down the line (much easier to trace a form then create the blue print from scratch.)

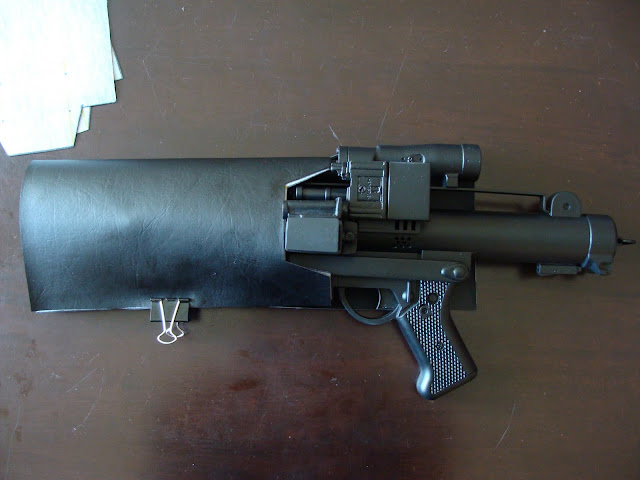

4.4: Test Fit


My personal preference is for the scope to be worn forward, my mag holder to face out and the fold in the material of the holster to be forward; so as the holster is to be worn on the left my mock up looks like the above. What's the difference? Have a look at the control pics for the BlackHole and you'll see the holster is on the left but the scope faces the back, and the mag is either pointed inward, or it has been removed for the pics. Again just a personal preference.

Everything fits, it needs a trim in a few areas, but we're good to keep going.



Total Time: 45 Minutes.



Next Step: Sewing ... Oh boy.



5th Step:

Sewing

This wasn't to bad actually. And it was pretty quick.

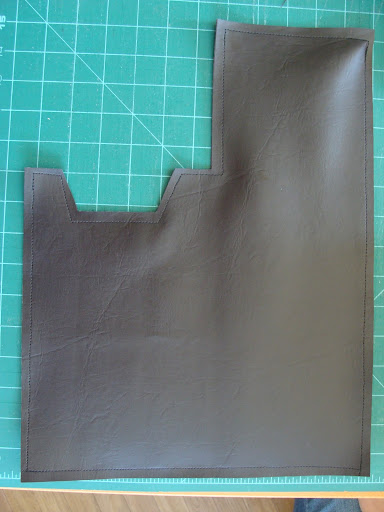

5.1: Vinyl Sandwich

Both sides were sewn together and then the little bit of trimming needed, as noted in step 4.4, was done. You'll notice that every edge here was sewn.


There seems to be a bit of extra fabric (holster doesn't lay perfectly flat)but I'm ok with that.

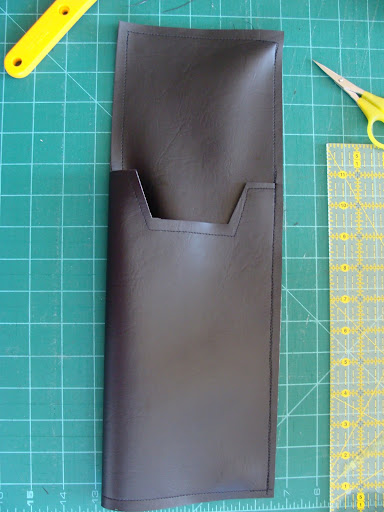

5.2: The Fold

The piece was folder over and sewn along a portion of one edge to create the actual holster. The bottom is left open.


So far so good ... I hope the blaster fits.

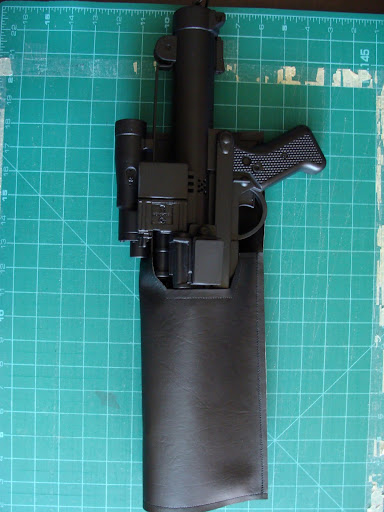

5.3: Test Fit

The blaster fits, but it looks like the back needs to be about an inch longer. I'll make a note of that.




Now to cut and add the strapping to attach to the holster to the belt and another to keep the E-11 securely in the holster.



Total Time: 1 hour 10 minutes



6th Step:

Rivets, a snap and straps.

This was all pretty straight forward. I needed to attach 3 rivets: 2 on the top of the holster for belt attachments, and one to secure the "safety strap" to the back of the holster. I also needed to put a snap on - Female end on the holster and male end on the safety strap.

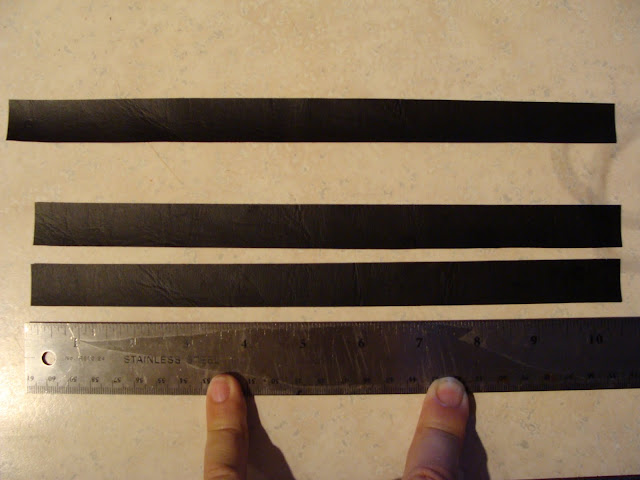

6.1: Strapping

I made 3 straps. 2 for looping over the belt and 1 for keeping the gun in the holster. I adjusted the length of the holster / belt straps as I wanted to loop the holster over the belt. The "blue print" calls for 4" straps - I made 10.5 inch straps. The other I left at the original length.

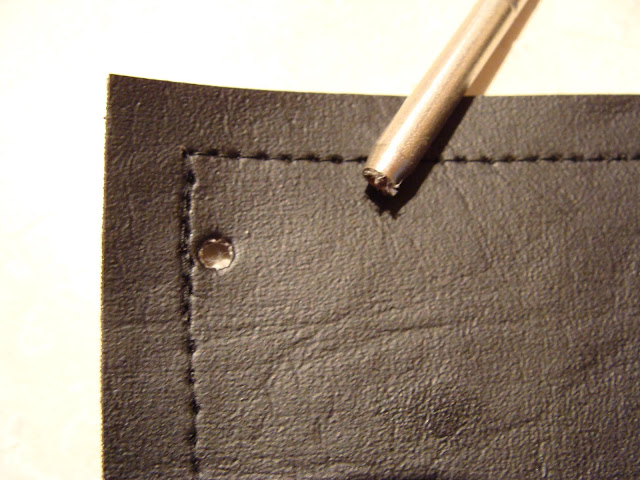

6.2: Hole Punch

I punched 3 holes for rivets. Two in either upper corner and one for the safety strap to attach to. Here is an example of one:

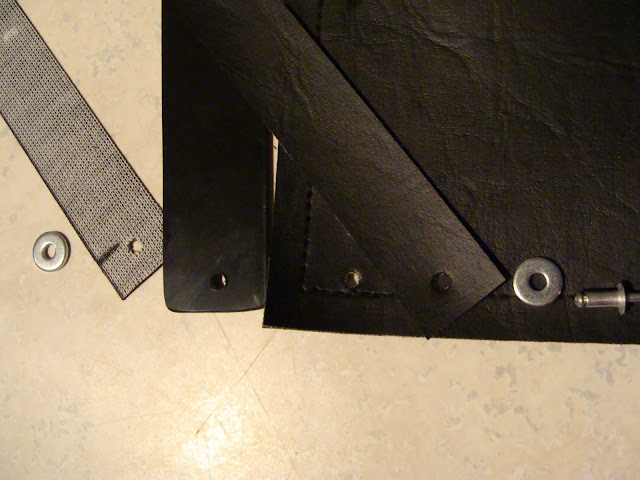

6.3: Riveting

I put in the top 2 rivets with a piece of ABS on the back of the holster for more rigidity. You can see in the picture the order of the parts used. The washers are exactly that, only specifically for attaching rivets to softer material.

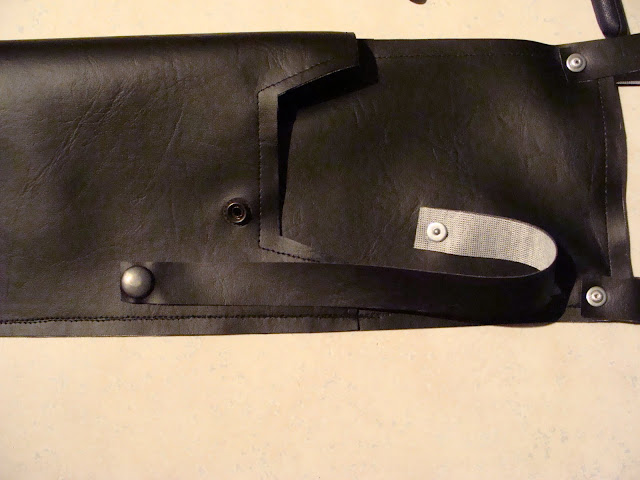

6.4: Attachment Locations

Here are the locations of the snaps and the rivets with everything attached.

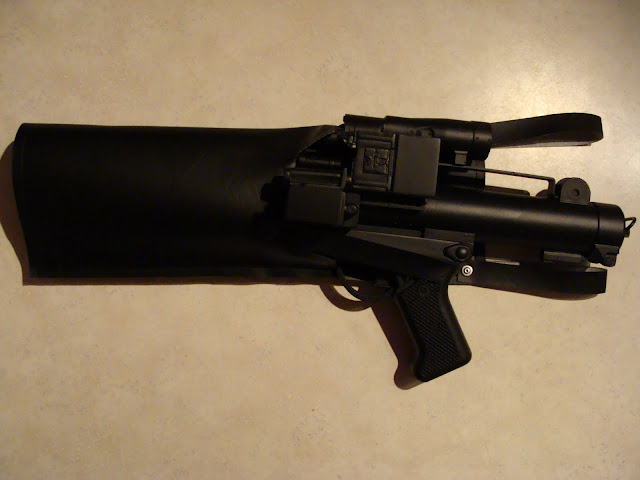

7th Step:

All Done.


I've still got to colour the backing of the vinyl but aside from that “ C'est Fini†! Iz, thanks for the suggestion about spray paint, but my wife has said "Don't you dare paint the oven again" so I'm using a "Sharpie" marker - permanent, non-toxic, flat black, and best of all it will only leave tiny marks on the oven.

Total cost of materials = $6 (Vinyl =$5, Snaps, Rivets and washers = $1)

Total Time = 1 1/2 hours.

Special Equipment Used(already had) = Sewing Machine with Vinyl Needle, Rivet Gun, Black Sharpie, Fabric Cutting Board & Wheel and Beers.



Final Thoughts:

Not bad, overall I think it's a bit small. It fit's my Hasbro Mod E-11 but the scale seems a bit off, especially when compared to my wife's big sturdy leather holster (from Anrev on the FISD boards - It's Really Nice, but costly in comparison)... My wife chuckled and asked "Does that mean you've got a case of Holster Envy? Are you going to make jokes about the size of my holster and then say that 'you're fine with yours and wouldn't know what to do with that much holster anyway', or maybe 'It's not the size of the holster but how you wear it'. " Ahhhh, good times.

I'd never done this before but I'm sold on doing this again. It's dead easy. And I did this post as I went. I didn't take pictures and then put everything together afterward.



Any comments or suggestions are welcome
