TreeHuggerMatt Posted July 15 Share Posted July 15 That makes a lot of sense. Makes it easier for builders and GMLs. Folk can just scale the biceps as they would currently then. Link to comment
kwdesigns[501st] Posted July 17 Share Posted July 17 Hi everyone, I’m currently only on page 2 of this topic for the ISB Tactical Agent’s CRL. Someone mentioned me by name (Kevin Weir -Imperial Surplus) on page 1 about my IG comment on the Buckles being different. I was referring to the Leg Strap Buckles. They are nothing like what has previously been used on new era characters. Also for the Back Plate Armor - the top hose bibs are not hollow for Andor. Only Solo and Mando show had them hollow. Andor 1 & 2 casted them solid with just a slight recessed center - slightly raised lip. Also should there be any mention of the side connectors, that are a fixed to the lower side of back armor. They wrap around towards the front belly. A 2” elastic belly strap is used through the 2 slots on each end to hold it together. Also only Velcro was used to affix the Chest to these side connectors for the screen used suits. I'm currently getting ready for SDCC next week. I’ll have more time afterwards to assist with more detail information about these characters. 5 Link to comment
Blackwatch[CMD-DCA] Posted July 17 Share Posted July 17 thnaks Kevin good luck at SDCC my eyes are getting older and relying entirely on screen grabs I never noted the difference in the hose connectors. @Tal Skirata referencing the images it looks like Gharian and Heert both have 2 inch black velcro holding front to back, thas also how my Jim Tripon armor came. So this is not velcro holding the front to the back? we have an eleastic web going up to the front from the back? what holds the front in place to keep it from flopping? Link to comment
Astara Posted July 17 Share Posted July 17 3 hours ago, kwdesigns said: They wrap around towards the front belly. A 2” elastic belly strap is used through the 2 slots on each end to hold it together. Id love to see 3d model makers replicate the exact intricacies of the armor, like Paul Prentice did with the shoretrooper. 1 Link to comment
Blackwatch[CMD-DCA] Posted July 17 Share Posted July 17 Shoulder and Bicep proposed text with changes noted in red srikethrough, green and amber alteration change log 1.0 Shoulder Armor One on each shoulder The shoulders are considered effectively symmetrical; they may be worn interchangeably on the left and right shoulders. and may have a black elastic strap that wraps around the inside of the bicep. webbing or velcro is permitted to keep the shoulder armor in place. Shoulder armor may be held up with a strap mounted under the shoulder bridge. OPTIONAL Level two certification (if applicable): There is no swoop on the shoulder bell raised area. There is no elastic strap that wraps around the inside of the bicep. Change Log 1.0 Bicep Armor Biceps are a split design, joined in the front. A slim gap may be present at the back of the bicep. Bicep cover strips are raised and beveled with an added strip layer on top. Biceps are painted to match the armor and helmet. 2 Link to comment
Blackwatch[CMD-DCA] Posted July 20 Share Posted July 20 any updates or discussion on this? Id like to clear and lock. Link to comment
kwdesigns[501st] Posted July 20 Share Posted July 20 The original TA suits used a 2” wide heavy elastic with snaps to hold the shoulder bells in place. A 1” wide black elastic was used to hold the biceps to the shoulder bells, also with snaps. The 1” black elastic was looped through the upper slot in the bicep. There is a difference between left and right biceps. Front is affixed/ glued together at the detail strip, backside closer is not affixed for sizing. 1 Link to comment
kwdesigns[501st] Posted July 21 Share Posted July 21 The original TA suit - They used black acrylic wash to age/weather all of the suits. Some more than others. 2 Link to comment

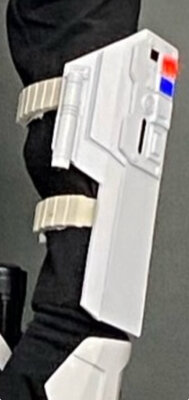

kwdesigns[501st] Posted July 21 Share Posted July 21 As for the leg straps… Starting from the outside of the shin plate, it’s visible that 2 bricks are fixed to the strap separately. Then the new style decorative buckle directly behind those 2 bricks. A parachute clip is behind the decorative buckle, with the receiving end of the parachute clip visible. ( not the prong side of the clip) Then a flat smooth area, approximately 2 inches long appears to be wrapping into the receiving parachute clip, followed by a series of bricks continue around the back of the boot/ leg and inner side of the person’s boot/ leg towards the inner edge of the shin plate. There is approximately 3 bricks more difference from the top strap and the bottom straps. The bottom strap has 15 bricks, the top has 18, not counting the first 2 separate bricks on the outside edge of shin plate. This total count would vary based on different boot sizes needed for the wearer. The bottom strap wraps snuggly to the ankle area of the boot. The upper strap is above the boot, wrapping around the leg. Each strap width is approximately 1 3/4 inch wide. 1 Link to comment
Diet_Evil Posted July 22 Share Posted July 22 On 7/17/2025 at 1:21 PM, Blackwatch said: Shoulder and Bicep proposed text with changes noted in red srikethrough, green and amber alteration change log 1.0 Shoulder Armor One on each shoulder The shoulders are considered effectively symmetrical; they may be worn interchangeably on the left and right shoulders. and may have a black elastic strap that wraps around the inside of the bicep. webbing or velcro is permitted to keep the shoulder armor in place. Shoulder armor may be held up with a strap mounted under the shoulder bridge. Does anything need to be put in regarding the black stripe? Link to comment
Blackwatch[CMD-DCA] Posted July 23 Share Posted July 23 thanks Kevin thats comprehensive and very helpful. Im going to write it to permit the strap at L1. For the black stripe, ill add that too as an option, and the way we write it, it may go into the optional items along with blasters. When we work our way down to the shin armor, i will circle back to this and quote it . Change Log 1.1 change log 1.1 Shoulder Armor One on each shoulder The shoulders are considered effectively symmetrical; they may be worn interchangeably on the left and right shoulders. and may have a black elastic strap that wraps around the inside of the bicep. Webbing or velcro is permitted to keep the shoulder armor in place. Shoulder armor is may be held up with a strap mounted under the shoulder bridge. OPTIONAL Level two certification (if applicable): There is no swoop on the shoulder bell raised area. There is no elastic strap that wraps around the inside of the bicep. Change Log 1.1 Bicep Armor Biceps are a split design, joined in the front. A slim gap may be present at the back. of the bicep. There is a left and a right side. They are not interchangeable. Bicep cover strips are raised and beveled with an added strip layer on top. Biceps may be held to the shoulder armor with black elastic. Biceps are painted to match the armor. and helmet. 2 Link to comment
Blackwatch[CMD-DCA] Posted July 29 Share Posted July 29 le sigggh....a week later. My life gets absolutely insane. 30 hour work days are all too common. The other day I home 43 minutes before I got called right back out for antoher 12 hours. back to our subject at hand: Movign forward with this, and with no input, I propose this as Change Log 1.2 Shoulder Armor The shoulders are considered effectively symmetrical; they may be worn interchangeably on the left and right shoulders.Velcro is permitted to keep the shoulder armor in place. Shoulder armor is held up with a strap mounted under the shoulder bridge. OPTIONAL Level two certification (if applicable): There is no elastic strap that wraps around the inside of the bicep. Change Log 1.1 Bicep Armor Biceps are a split design, joined in the front. A gap may be present at the back. There is a left and a right side. They are not interchangeable. Bicep cover strips are raised and beveled with an added strip layer on top. Biceps may be held to the shoulder armor with black elastic. Biceps are painted to match the armor. 2 Link to comment
Blackwatch[CMD-DCA] Posted Thursday at 06:45 PM Share Posted Thursday at 06:45 PM Ok, so no further dicsussions, i think we can lock and move on. Next will be the forearms, and Im goign to take a stab in the dark at these. This will be a very rough outline Forearms Forearms are present on both arms and consiste of flat plates with facets joined at an angle at the outermost part of the arm. Forearms are not symmetrical. The lowe angles of the left forearm are shorter than the right forearm. A commpad featuring varous depresssions and shapes is mounted to the left forearm. There are two straps on each forearm. Part of the strap is molded and resembles the shin straps. The remainder of the strap is white webbing and closes with a whlte side release buckle. A white torch may be present on the left forearm. 1 Link to comment
Klaus92 Posted Friday at 08:29 AM Share Posted Friday at 08:29 AM Im sure we have thought about it, as options, the one armed wonder and wooly hat version? Also, do we have any real-world versions of the bags and attachments that some of the forward team are wearing? Specifically, the 'stunner' holding tac belt? Also, it looks like the radio can go either side of the chest armour. Link to comment
ChrisThePropGuy[501st] Posted 1 hour ago Share Posted 1 hour ago Id add the strap being tan/beige in colour too and maybe the natural cotton style webbing rather than PP style. Link to comment
