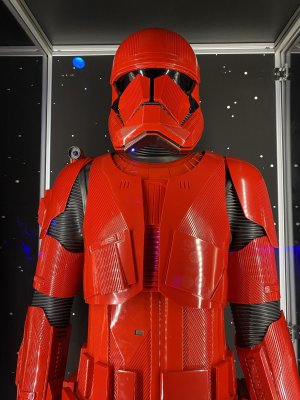

Just a little pic to show just how flexible this material really is! Look at how the ab is bunching up there! This really is a flexible PU!

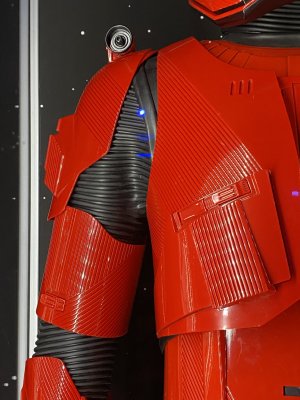

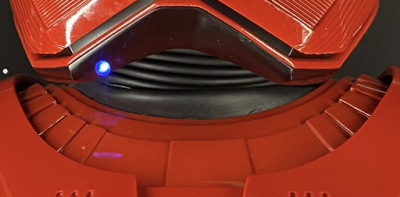

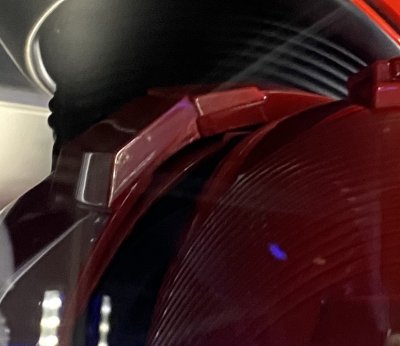

Ready to gain agreement Cuirass & Gorget (Chest/Back Armor) Finished in a high gloss deep red that matches the colors of the entire costume Cuirass is comprised of the Chest and back, with a Gorget forming the neck opening Cuirass Back The back has an O II (02) shape is made up of recessed II and the O is a recessed circular line divided almost in half by an intersecting horizontal line The bottom part of the circle is recessed, is black and is slightly smaller in appearance than the top half There is a small black vertical oblong recess in the top half to the left side The back has two trapezoidal "buckles" at the top back of the shoulders where it connects to the chest shoulder trapezoidal buckle The back has a recessed trapezoidal shape at the bottom of the left shoulder buckle that has more than13 recessed vertical lines The bottom of the this shape is the same length as the top half of the lower trapezoidal section. The angle of the bottom matches the angle at the top of the bottom trapezoid. The recessed/raised lines do not extend all the way to the bottom The inside line of the trapezoid matches the angle of the buckle On the back there is a raised trapezoidal section that starts at the base of the back and extends towards the left shoulder. There is a small recessed rectangle directly about the top of the trapezoid and is black. The top of the Trapezoid is the same width as the bottom of the recessed trapezoid under the top left shoulder. The angle of the top of the this trapezoid is parallel to the bottom of the recessed trapezoid at the base of the left buckle. The raised section gets higher towards the top and arches out slightly from the wearer’s back. Cuirass Chest 3 vertical oblong recesses near the collar on each side of the chest near the centre opening The chest extends over the shoulder towards the back forming the shoulder straps which have an attached trapezoidal buckle that appears to connect to the trapezoidal buckles on the upper back armour. There are recessed lines extending diagonally out from the back collar to the shoulder, these lines intersect a few recessed lines deep with the vertical horizontal lines on the front. Raised smooth/flat section at front extends around the under arm of the wearer towards back. Starts as rectangular and tapers to match shoulder/arm hole There are two raised panels on the lower section of the chest, each extends under the arms towards and forms the lowest part of the sides. Each panel has the appearance of a separate piece and there is a recess that runs around the outside edge Left lower panel has one recessed diagonal channel Right lower panel has a small rectangular box/raised area with at least 12 evenly spaced, vertical and slightly angled recessed lines, the bottom of the box/raised area extends slightly outwards from the wearer. There is a clip & buckle greeblie separated by a ratchet strap greeblie in a recessed cavity just above the box (please refer to the diagram) There are a number of vertically diagonal and evenly spaced recessed lines that start at the top of the rectangular part of the front boxes, and extend towards the armhole. There are a number of recessed diagonal lines under the arms that extend from the armhole towards the front, intersecting with the curve of the raised box section. There are a number of vertically diagonal, evenly spaced recessed lines that start approximately halfway under the armhole and extend back to and underlap the Cuirass back. The recessed lines match the diagonal shape of the back armour. Both chest sides connect to the lower back armour The centre section of the chest has the appearance of being a separate piece that has rectangular and horizontal recesses in lower section, vertical recesses in upper section and a small rectangular recess near the top Gorget (Collar) - One piece that goes under the cuirass to form the neckline of the armour Finished in a high gloss deep red that matches the colors of the entire costume Sits flat around the neckline Sits under the cuirass (or chest/back) and fits closely to the Neck Seal and appears to be part of the cuirass If there is a seam, it is as unnoticeable as possible and shall be securely closed with no visible overlaps or gap present There are 3 visible steps forming rings around the neckline, ascending from the neckline to the cuirass or chest/back. The third ring from the neckline and is closest to the armour has the following details: 15-17 raised sections that start and end at the shoulders, one centre raised section at the centre front that matches the width of the opening of lower front part of the cuirass opening, 7 smaller and evenly spaced raised sections that extend towards the shoulder Segments 1-5 (from the centre section) and 7 are roughly 25mm wide Segment 6 (from the centre) is roughly 25mm wide OPTIONAL (Level 2) The gorget must be a separate piece with no seam constructed of a flexible rubber like material Chest shoulder buckle is a separate piece Ratchet strap greeblie has 5 visible teeth Small rectangular box on the right chest has 13 recessed vertical lines Trapezoidal recess on the back under the left buckle has 15 recessed lines There are 8 recessed lines extending diagonally out from the back collar to the shoulder, these lines intersect 6 recessed lines deep with the vertical horizontal lines on the front. On the front chest there are 27 vertically diagonal and evenly spaced recessed lines that start at the top of the rectangular part of the front boxes, and extend towards the armhole. There are 12 recessed diagonal lines under the arms that extend from the armhole towards the front, intersecting with the curve of the raised box section. The centre section of the chest has the appearance of being a separate piece that has 12 rectangular and horizontal recesses in lower section, 5 vertical recesses in upper section and a small rectangular recess near the top

Thanks mate I think you're absolutely right. Based on that last square in the bottom right corner, the way it has been "joined" is slightly off:

I have not been able to find any separation between the chest and back. The shoulder seems to morph from the chest into that termination block at the back. I also cannot find a decent enough pic to confirm the separation between the termination block and the back.

So we are saying that the Chest/Back armor is comprised of 3 components: Poncho, Center-Chest Plate and a Back/Yoke? If this is the case then maybe the CRL should be written with the Chest/Back as one section that can easily be divided into L1 - L3, I would expect that this level of detail will be L2/L3

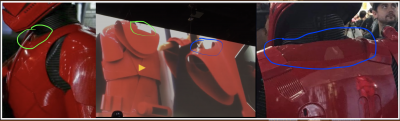

Based on what you're saying @gmrhodes13 and what I can see here is my closest representation of the chest/back armor with the poncho The green represents the "poncho" and the blue represents the outer armor. Judging by what I can see the outer armor is one piece that sits over the top of the "poncho" to give the appearance of one piece then overlaps and closes at the back (solid blue). The irregularities that you are seeing around the neck are probably due to the way they were fitted or difference in actor body shape around the shoulders.

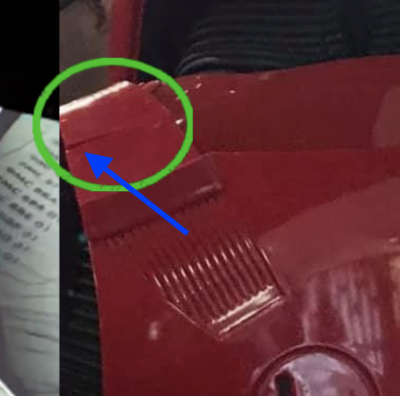

This was one of the reasons I was holding off on the chest and back CRL, it appears that that the chest and back are one piece joined at the back, however they are two layers with the "poncho". That top left picture is very telling! On the side show toy there is a small seam, but on the real world suits there is none. Did you notice the little ledge on the abdomen towards the back to keep the belt aligned?

I saw that in the FOTK and wondered about why you would considering they are different boots. One has a heel and the other does not. It’s up for debate, however it could be an opportunity to “fix” it? For me personally, I think it should be what’s on screen or display.

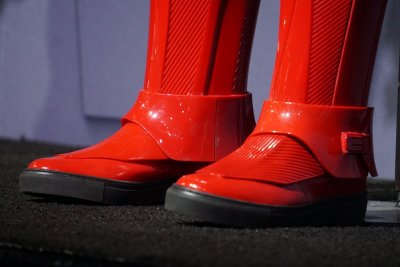

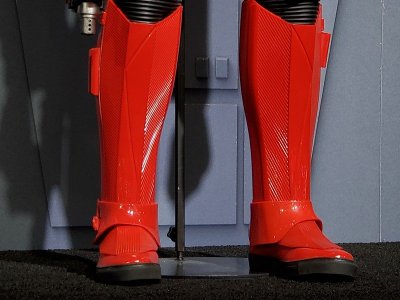

This section is now pending agreement. Once agreement has been reached then I will add this to the main CRL text. Boots & boot armor Boots: FO style boot finished in a gloss or semi-gloss red that closely resembles the armor Sole is black rubber with no visible heel No visible buckles or laces Boot Armour finished in a high gloss deep red that matches the colors of the entire costume Fixed to the top of the boot and sits under the spats divided into 3 sections that the top front section has a number recessed lines running vertically as shown the outer section has diagonal lines running parallel to the edge of the armour as shown the inner panel is smooth/flat and has no recessed lines the front panel is of equal width to and lines up with the front section of the shin OPTIONAL Level two certification (if applicable): The boot color and gloss shall match the armour Top front section of the armor has approx 10 recessed lines Outer section of the armour has at least 14 visible recessed lines Rectangular section on the toe and the heel of the boot that is knurled Stitching at the top of the sole runs the entire diameter of the boot There is a seam down both sides of the front that swoops out to the side of the foot There is a vertical zipper on the inside that spans the height of the boot.

I have to say I am really interested in the back/chest armour. There are a couple of things that stood out for me. First is that there are overlaps where the back overlaps the sides: Then there was a couple of things that @gmrhodes13 pointed out in the videos where it appears that there are two layers to the chest/back: Above I have tried to illustrate the point he was making by highlight the front and back of the chest/back armour. It's kind of like a poncho idea that was used with the Deathrooper except that it forms part of the armour. I am thinking that the chest and back are the same piece but with two layers. What does everyone else think?

I am in a agreement there

If you have some hi-res ones send em via google drive or drop box

That image is a bit pixelated and lighting is wrong, Cannot see much except there is something there. There is definitely a lot happening up under the brow. Will try to put that into words...

Perfect!

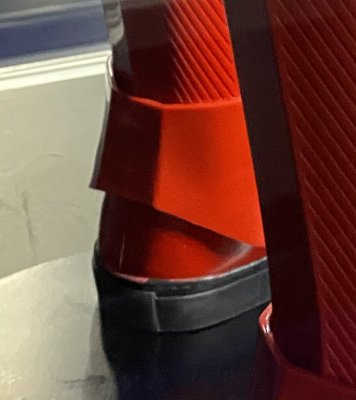

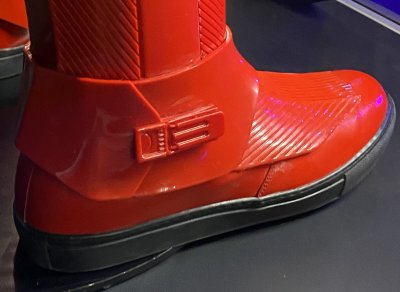

Ready for agreement Spats Finished in a high gloss deep red that matches the colors of the entire costume The spats wrap around the lower ankle The spats are enclosed on the outside of the ankle with a clip greeblie that overlaps from the back side over the outside There is a flat section at the back of the spat that is equal in width to the rear flat section of the shin Are fitted over the top of the shin Are fitted over the top of the boot armor OPTIONAL Level two certification (if applicable): Clip greeblie is the correct spat greeblie There is a visible seam on the inside of the ankle

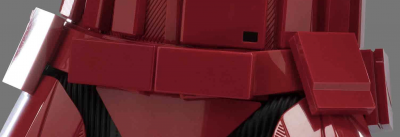

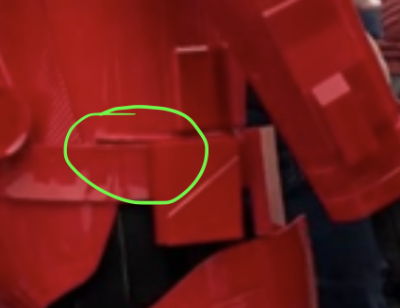

Up for review Belt and Boxes All parts finished in a high gloss deep red that matches the color of the entire costume The Belt sits flush to the bottom of the belt-ledge on the abdomen Is about 50mm or 2" wide and 8-10mm thick Has no visible openings or fasteners Has the appearance of being flexible 6 belt boxes are attached securely to the belt Attached to the front are 2 evenly sized rectangular, horizontal boxes with the appearance of lids, matching the width of the belt. The outer edges of the box are filleted. Front-Right drop box is rectangular, mounted just above the top of the belt and drops down vertically, it is a single box in appearance that has no lid or visible seams. The edges of the box are sharp. The box is mounted to the belt with a piece of material that is 8-10mm thick like a riser. (Gives the appearance of hovering slightly outward from the belt) Front-Left drop box is rectangular, mounted just above the belt and drops vertically down and has the appearance of a lid with a chamfered horizontal edge about 3/4 down from the top. The edges of the box are sharp. The box is mounted to the belt with a piece of material that is 8-10mm thick like a riser. (Gives the appearance of hovering slightly outward from the belt) 2 drop boxes with diagonal recess, towards the side rear, near kidneys on each side, mounted slightly above the belt, has a pronounced appearance of a lid and is deeper in volume than the other boxes. The box is mounted to the belt with a piece of material that is 8-10mm thick like a riser. (Gives the appearance of hovering slightly outward from the belt) There is a diagonal channel on the lid that starts near the top front of the box and extends downwards to the rear. The channel extends around to the sides of the lid. The outermost face of the lid has slightly filleted edges, the rest are sharp. OPTIONAL Level two certification (if applicable): Belt is made of flexible PU or rubber type material Belt ends must connect behind the front boxes Belt is approximately 50mm wide and between 8 to 10mm thick The dimensions of the two front boxes are as follows: About 100-110mm wide by 50mm high Outer facing part is about 8mm thick, inner part is curved to match the abdomen The boxes form a slight inverted 'V' shape when viewed by wearer The dimension of the front right box Box is flat with sharp edges and is about 14-15mm thick Is about 80 mm wide Is about 95mm high The dimensions of the front-left Box Inner box part attached to belt is 10mm thick Outer lid part is 8mm thicket the top and 4mm thick at bottom below chamfered edge Total width of the box is about 80mm wide Total height of the box is about 100mm The lid has a 45 degree chamfered edge that turns inwards about 64mm down from the top or about 22mm from the bottom The dimensions of the side/kidney boxes The total box width is about 75mm The total box height is about 95mm The box lid has a diagonal channel that is about a 4mm wide, starts 25mm from top-front to 25mm up from bottom-back and extends around the sides of the lid 6mm wide channel 8 mm in from front, running around the perimeter of the box forming the lid Total depth of the box is about 26mm

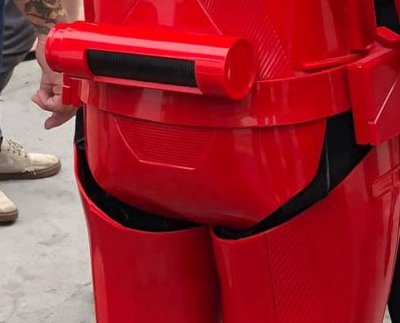

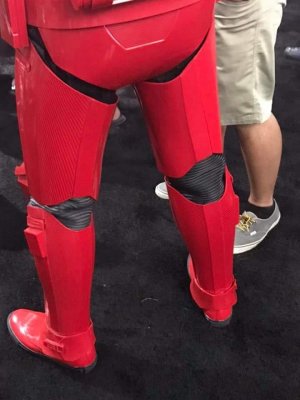

Ready to go Posterior Finished in a high gloss deep red that matches the colors of the entire costume Sits directly under the belt and has the appearance of being attached to the belt assembly Is trapezoidal in shape yet curved to a posterior shape Has a recessed trapezoidal section directly below the belt, within this section are further recessed lines running horizontally OPTIONAL Level two certification (if applicable): Recessed trapezoid section has approximately 14 recessed lines

Up for agreement now Cod Finished in a high gloss deep red that matches the colors of the entire costume Has the appearance of being connected to the abdomen belt assembly Sits directly under the belt Has the appearance of two separate pieces joined together upper section is a trapezoid shape roughly 3-4" in length and terminates about 1 1/2" into the lower section lower section is curved and extends down to cover the wearer's groin OPTIONAL Level two certification (if applicable): There is no connecting material between the cod and the posterior

Ready for agreement Abdomen Section Finished in a high gloss deep red that matches the colors of the entire costume The abdomen section must wrap around the wearer's body without a visible seam, the opening is concealed by the Thermal Detonator Plate The top of the abdomen is covered by the Cuirass The abdomen has 8 rectangular boxes that have chamfered edges, sit flush on the abdomen and matches the order and placement shown The largest horizontal box has a small black recessed square to on the lower left to the wearer The smaller boxes are identical in size to each other The 2nd box from the wearer's right has diagonal recessed lines The abdomen has 4 vertical raised 'cover strips' along the front half of the abdomen, they start from the belt and disappear under the cuirass the two right strips are smaller the two left strips are larger, with a recessed channel just slightly off center to the right In the first channel between the two right strips are diagonal recessed lines that start from the belt and disappear under the cuirass. Ribbed details run from the inside edge of the outermost 'strips' to a point just above the 4th abdomen box from the right There is a recessed rectangle above the 4th abdomen box from the left, on the plain section of the armor, Diagonal recessed lines extend downwards from the first right-most cover strip, appear to underlap the 2nd coverstrip and terminate over the 4th box from the wearer's right. Diagonal recessed lines extend downwards from the left most cover strip, appear to underlap the large cover strip (front left) and terminate over the same 4th box from the wearer's right. OPTIONAL Level two certification (if applicable): There is a visible ledge that holds the belt in place just below the abdomen boxes, it extends to within an inch from the edge of the Thermal Detonator Mounting Plate There are 5 tabs below this ledge to support the belt. Widest one is at the front and aligns with Cod, with two smaller ones each side of the large one The 2nd box from the wearer's right has 16 diagonal, recessed lines The termination of the diagonal lines forms a small trapezoidal shape above the 4th box from the wearer's right. All the boxes are separate and not moulded to the abdomen

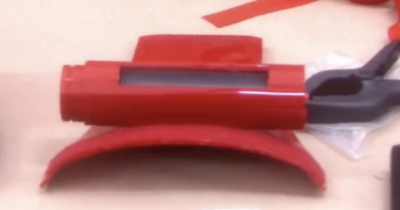

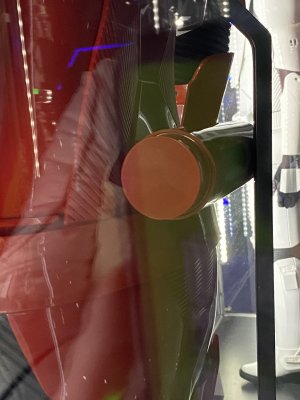

The thermal detonator is divided into two distinct parts, the thermal detonator itself and the armour it is attached to; the mounting plate Thermal Detonator The outer cylinder is finished in a high gloss deep red that matches the colors of the entire costume The internal cylinder is satin black and ribbed The right hand end cap has a chamfered recess that extend inwards to a small circular recess on the inside of the cap The left hand end cap extends from the detonator assembly and there is a small channel that runs the circumference There are no visible seams Is postioned just above the belt Is mounted on the lower section of the mounting plate Thermal detonator mounting plate Finished in a high gloss deep red that matches the colors of the entire costume Sits under the cuirass The belt overlaps the lower section of the plate The mounting plate is a long trapezoidal shape, divided into 4 sections by recessed lines The top and lower trapezoidal shapes are slightly raised outward and have a smooth surface the bottom trapezoid is separated by a channel that runs around the perimeter The recessed lines run parallel to the edges of the top trapezoid section The recessed lines start from the outer edge and terminate in the perimiter channel of the bottom trapezoid OPTIONAL Level two certification (if applicable): The left and right panels of the thermal detonator mounting plate have 36 recessed lines each The satin black, ribbed, internal cylinder on the Thermal Detonator has 36 ribs

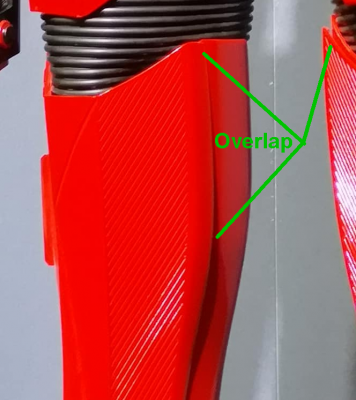

Pending Agreement Shins Finished in a high gloss deep red that matches the colors of the entire costume Each shin can be divided into 8 panels alternating between recessed lines and flat, comprising of the following: The front panel of each shin is flat and is the same width as the top panel of the boot armour and is squared at the top The front panel has a recessed channel that starts at the top of the panel closest to the inside, extends outward 1/4 way down then back towards the ankle meeting at the top of the spat forming a scalene triangle The front inside panel overlaps the inside panel The inside panel is slightly curved along the top A Clip Greeblie is present on outside panel near the top of the shin The front 3 panels have straight, angular edges at the top, with the recessed lines following the top edges of the two outer panels to base of the shin The back 3 panels, the middle one has a straight line at the top, with the two outer panels curving slightly to the inside and outside panels The outer panels have vertical seams that separate the recessed lines from the flat section Each shin is roughly the mirror opposite of each other with the following differences on the outer panels Right shin has a rectangular section that is about 2/3 up from the bottom The right shin has two elongated trapezoidal boxes that are chamfered with one flat section between them evenly spaced in 3rds Left Shin has a rectangular box appearing to have a lid, directly below the clip greeblie The base of the shins is covered by a spat OPTIONAL Level two certification (if applicable): Clip greeblie is the correct shin greeblie outlined in the document Rectangular box on left shin has the following details Has the appearance of two pieces, base and lid. The lid is a bout 4mm deep with a 1mm recess between lid and base A small oblong shaped recess on the top left base part of the box Front Inside Panel has 48 recessed lines Front Outer Panel has 69 recessed lines Back Inside Panel has 36-38 recessed lines Back outer panel has 50-52 recessed lines

Ready for agreement Thighs Finished in a high gloss deep red that matches the colors of the entire costume No holster is present on either thigh Each thigh is comprised of 7 sections, front, inner-front, inner-rear, rear, outer-rear, outer, outer-front Front and rear sections are both raised slightly in appearance and smooth flat surfaces. A diagonal channel runs from the top outer edge of the section panel, to about 1/2 way down towards the inner thigh Each Front inner thigh section has a number of evenly spaced, diagonally recessed lines, starting from top of the section sloping downward from the wearers cod to the front of the thigh terminating 3/4 down the thigh. Left thigh recessed lines terminate approximately at the top of the sniper plate Right thigh recessed lines terminate approximately half-way between the "chocolate bars" Angle of the recesses is roughly 33 degrees from the font section edge Each Rear outer panel has a number of evenly spaced, diagonal recessed lines that slope downwards from outer to inner thigh Each outer section forms a visible vertical seam towards the wearers front, is smooth and has a clip greeblie near the top Each thigh has the appearance of an overlap on the inner thigh where the inner-front section overlaps the inner-rear section Front bottom edges of the thigh are angular in nature and dip towards the wearers knee from the sides Right thigh There are two vertical rectangular boxes above the knee that have chamfered edges that look like "chocolate bars" Each box sits in a slightly larger recessed cavity towards the top leaving a small recessed section exposed at the bottom Recessed channel that traverses the front 3 panels roughly 25-30mm from the bottom Left Thigh Large hexagonal 'sniper plate' just above the knee which has two raised rectangular 'boxes' in the centre of the upper left and upper right faces of the sniper plate two dark grey or matt black, rectangular shaped recesses above the sniper plate, are angled slightly outwards from the knee OPTIONAL Level two certification (if applicable): Inner thigh section has approximately 45 evenly spaced recessed lines Outer-rear section has approximately 34 evenly spaced recessed lines Greeblie clip is the correct thigh greeblie clip (see diagram) and appears to be slotted into a recess (i.e it doesn't sit on top of the armour) The inner-front section overlaps the inner-rear section forming an overlapping closure

Up for review Forearms Finished in a high gloss deep red that matches the colors of the entire costume Each forearm is a slightly pentagonal and curved in shape at the wrist opening Each forearm piece is different but can be divided into 6 sections; Inside, Outside, Front Inside, Front Outside, Back Outside, Back Inside. The Front Inside and Front Outside can be seen from the front and the Back Outside and Back Inside can be seen from the rear. Left forearm The left forearm has a more shallow inner elbow cutout than the right that is slightly curved inwards. The Outside forearm section is divided in half by a curve that runs from the elbow to the wrist. Half of this section is smooth with a ‘D’ shaped indentation near the inner elbow. The other half is recessed inwards from the smooth section and has a number of vertical recessed lines with a small rectangular recessed area toward the wrist opening that has a small black recessed square towards the wearers thumb. The rectangular section is roughly 2/3rds the width of the wrist. The outside forearm section has an inward curved edge at the elbow. The Front Inside section has a number of vertical recessed lines the run from the wrist and terminate with a number of recessed lines that are at a 45 degree angle at the elbow end. The diagonally recessed lines cross over to the Front Outside section The front inside section has an angled edge at the elbow opening that does not match the angle of the recessed lines The Front Outside panel is smooth and 2 inwardly angled edges at the elbow opening. The Inside Forearm is raised roughly 10mm with chamfered edges. There is a recessed section with a Pickatinny like rail that has 3 buttons. There are visible ridges with the buttons in the second, fourth and seventh gaps of the rail starting from the wrist. The Pickatinny rail ridges are more spaced on the left than the right forearm. The Inside of the forearm is a panel connected to the rest of the forearm forming a seam. There is another box mounted to the raised section that has a sloped edge running from the rail surface to the box 'face'. The box face has a single black rectangle towards the front outer edge. There is a small recessed black rectangle on the side facing the wearers palm and is closest to the pinky side The Back Inside section has a number of vertical recessed lines that fan out from the wrist towards the elbow. The back inside section has a straight angled edge at the elbow The Back Outside Section has a number of recessed lines at a 45 degree angle, starting from the elbow, sloping from outside to inside as viewed from the back. They terminate just over halfway down the section, the rest of the section is smooth. The Back Outside section has 2 angled edges at the elbow opening Right Forearm The Inside Forearm section is slightly raised compared to the left. It has Pickatinny rail that is not recessed into the forearm like the left and has ridges starting from the elbow end with the last one partially obscured by the wrist box. The Pickatinny rail ridges are less spaced on the right than the left forearm. The inside forearm section has a slight inner curved edge at the elbow opening with two black recessed oblong shapes. There is a box mounted to the raised section on the inside forearm that has a sloped edge running from the rail surface to the box face. The box face has a single black rectangle towards the front outer edge. There is a small recessed black rectangle on the side facing the wearers palm and is closest to the pinky side The Back Inside section has a number of vertical recessed lines that fan out from the wrist towards the elbow. The back inside section has semi-circular edge that curves downwards from the elbow to the inside at the opening The front inside section has two clip greeblies that are recessed into two channels that appear to extend around to the back outside section. The channel closet to the wrist is visible while the second channel ends out the boxes on the outside section. The front inside section has a number of vertical recessed lines starting from the wrist and extend towards the elbow intersecting with a number of diagonally recessed lines. The diagonally recessed lines start at the inside panel seam and wrap around the forearm at the elbow on the front outside panel. The rest of the panel is smooth. The front inside section has a straight angled edge at the opening of the elbow that matches the angle of the recessed lines. The back outside section is smooth, has the two channels from the clip greeblies and an angular recessed section the has a small moulded “P” like clip greeblie closest to the inside of the forearm. The outside forearm has a series or angular boxes; the largest covers most of the forearm and has a number of vertical recessed lines and two recessed oblong shapes on the frontside and backside of the box that have a small black (satin or matte) recessed circle towards the wearers wrist. On top of the largest box and closest to the wrist, and is nearest to the back of the box, is another smaller angular box that also has a small black recessed oblong facing the wearers hand. When viewed from the outside there is an angular pattern formed by a recessed line that is continued from the Front Outside and Back Outside panels. It cuts horizontally across the largest box and diagonally on the smaller outer-most box. The Outside Forearm section has a slightly inward curve at the elbow opening OPTIONAL Level two certification (if applicable): Left Forearm The Outside Forearm has 18 recessed lines The Front Inside Section has 11 vertically recessed lines and 12 diagonal recessed lines The Back Inside section has 11 vertically recessed lines (12 including the panel intersection seam)\ The Back Outside section has diagonally 16 recessed lines Right Forearm The Back Inside section has 11 vertically recessed line (12 including the panel intersection seam). The front inside section has 6 vertical recessed lines and 10 diagonally recessed lines. The large Outside Forearm box has 15 vertical recessed Pickatinny rail has 9 ridges

Thanks for gathering all this reference material @gmrhodes13 it’s making life a lot easier. I do understand the effort you’re putting in because I see it all across social media as well!

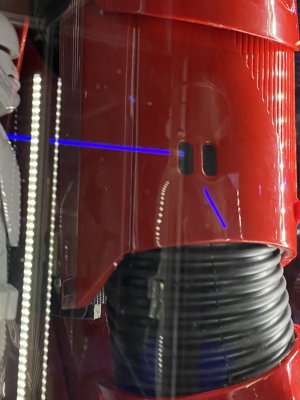

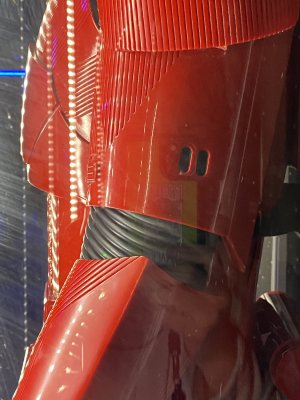

Pending agreement Biceps Finished in a high gloss deep red that matches the colors of the entire costume One on each bicep and are mirror opposites of each other The biceps are made up of two parts; inner and outer bicep One seam that faces forward Overlap towards the inner rear of the bicep Clip greeblie is present low and overlaps the seam There is a small rectangular recessed section just above the clip Two black ovals are present on the outside facing side of the bicep Larger vertical recess towards the rear outer section, intersects where the bicep angles down toward the rear The rear of the bicep has an angular line that drops about 25mm to form a rectangular section when viewed from the rear The rectangular sections have approximately 11 recesses on each bicep The angular sections that meet to form the rectangular sections at the back are flat At the bottom of the rear rectangular section is a black horizontal oblong shaped recess There are vertical recessed lines in the front of the bicep Start at the small rectangular recessed section above the clip greeblie The recesses on the outer bicep terminate at a roughly 33 degree angle The vertical recesses on the inner bicep are roughly angled at 45-47 degrees There are 45-47 degree recessed lines that run around the inner bicep terminate at the front seam and bottom of bicep are overlapped at the inside-back by the rectangular section at the back OPTIONAL Level two certification (if applicable): Clip greeblie is the correct bicep greeblie as per diagram The recessed section above the clip has two steps There are a total of 32 vertical recessed lines at the front that start on the inside of the bicep and end on the outside forming a 'V' shape intersecting at the bicep clip There are a total of 25-30 visible diagonal recessed lines that that start at the front seam and continue around the inside of each bicep disappearing behind the overlap on the inner rear
